javaweb開發之servlet圖形驗證碼功能的實現

一驗證碼的由來

灌陽網站建設公司創新互聯公司,灌陽網站設計制作，有大型網站制作公司豐富經驗。已為灌陽千余家提供企業網站建設服務。企業網站搭建\成都外貿網站建設公司要多少錢，請找那個售后服務好的灌陽做網站的公司定做！

在web項目開發中，為了防止部分人使用自動工具（如：自動注冊機）等進行批量的數據處理，在不同的功能節點部分，添加了驗證碼進行驗證，達到對自動軟件的屏蔽效果

最經典的應用如：網站注冊圖形驗證碼；接下來，通過java技術，結合servlet實現一個網站注冊需要的圖形驗證碼程序，提供大家參考。

二實現注冊頁面圖形驗證碼效果

1. 創建web項目：java_servlet_verifyimg

2. 創建自動生成圖形驗證碼的控制器——VerifyImgServlet

package com.phome.util;

import java.awt.Color;
import java.awt.Font;
import java.awt.Graphics2D;
import java.awt.image.BufferedImage;
import java.io.IOException;
import java.util.Random;

import javax.servlet.ServletException;
import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import com.sun.image.codec.jpeg.JPEGCodec;
import com.sun.image.codec.jpeg.JPEGImageEncoder;

public class VerifyImgServlet extends HttpServlet {

 /**
  *
  */
 private static final long serialVersionUID = 1L;

 // 設置隨機字符字典。其中不包含0,o,1,I等難以辨認的字符
 public static final char[] CHARS = { '2', '3', '4', '5', '6', '7', '8',
   '9', 'A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'J', 'K', 'L', 'M',
   'N', 'P', 'Q', 'R', 'S', 'T', 'U', 'V', 'W', 'X', 'Y', 'Z', 'a',
   'b', 'c', 'd', 'e', 'f', 'g', 'h', 'j', 'k', 'l', 'm', 'n', 'p',
   'q', 'r', 's', 't', 'u', 'v', 'w', 'x', 'y', 'z' };

 public static Random random = new Random(); // 隨機數對象

 public static String getRandomString() {

  StringBuffer buffer = new StringBuffer(); // 字符串緩存
  for (int i = 0; i < 6; i++) // 六次循環獲取字符
  {
   buffer.append(CHARS[random.nextInt(CHARS.length)]); // 每次隨機取一個字符
  }
  return buffer.toString();
 }

 public static Color getRandomColor() {

  return new Color(random.nextInt(255), random.nextInt(255),
    random.nextInt(255));
 }

 public static Color getReverseColor(Color c) {

  return new Color(255 - c.getRed(), 255 - c.getGreen(),
    255 - c.getBlue());
 }

 public void doGet(HttpServletRequest request, HttpServletResponse response)
   throws ServletException, IOException {

  response.setContentType("image/jpeg"); // 設置輸出類型 不可省略

  String randomString = getRandomString(); // 調用生成隨機字符串方法獲取并接受隨機字符串
  request.getSession(true).setAttribute("randomString", randomString); // 將字符串存儲到Session中

  int width = 100; // 圖片寬度
  int height = 30; // 圖片高度

  Color color = getRandomColor(); // 獲取隨機顏色 用于背景色
  Color reverse = getReverseColor(color); // 反色 用于前景色

  BufferedImage bi = new BufferedImage(width, height,
    BufferedImage.TYPE_INT_RGB); // 創建一個彩色圖片
  Graphics2D g = bi.createGraphics(); // 獲取繪圖對象
  g.setFont(new Font(Font.SANS_SERIF, Font.BOLD, 16)); // 設置字體
  g.setColor(color); // 設置顏色
  g.fillRect(0, 0, width, height); // 繪制背景
  g.setColor(reverse); // 設置顏色
  g.drawString(randomString, 18, 20); // 繪制隨機字符
  for (int i = 0, n = random.nextInt(100); i < n; i++) // 畫最多一百個噪音點
  {
   g.drawRect(random.nextInt(width), random.nextInt(height), 1, 1); // 隨機噪音點
  }

  ServletOutputStream out = response.getOutputStream(); // 好像是獲取輸出流

  JPEGImageEncoder encoder = JPEGCodec.createJPEGEncoder(out); // 編碼器
  encoder.encode(bi); // 對圖片進行編碼
  out.flush(); // 輸出到客戶端

 }

 public void doPost(HttpServletRequest request, HttpServletResponse response)
   throws ServletException, IOException {

  this.doGet(request, response);
 }

}

3. 創建注冊控制器——RegistServlet

package com.phome.servlet;

import java.io.IOException;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;

/**
 * 注冊控制器
 * @author ZuoYi
 *
 */
public class RegistServlet extends HttpServlet{

 /**
  *
  */
 private static final long serialVersionUID = 1L;

 @Override
 protected void doGet(HttpServletRequest req, HttpServletResponse resp)
   throws ServletException, IOException {
  this.doPost(req, resp);
 }

 @Override
 protected void doPost(HttpServletRequest req, HttpServletResponse resp)
   throws ServletException, IOException {
  // 從session中獲取注冊隨機驗證碼
  HttpSession session = req.getSession();
  String randomString = (String)session.getAttribute("randomString");

  // 獲取用戶輸入驗證碼
  String inputRandomString = req.getParameter("randomStr");
  // 判斷驗證碼通過，模擬進行注冊
  if (randomString.equals(inputRandomString)) {
   req.setAttribute("resinfo", "恭喜！注冊成功！");
  } else {
   req.setAttribute("resinfo", "驗證碼輸入有誤，請檢查后重新進行注冊！");
  }
  // 注冊成功或者失敗，都跳轉到result.jsp頁面，查看注冊結果。。。
  req.getRequestDispatcher("result.jsp").forward(req, resp);
 }


}

4. 配置servlet

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" id="WebApp_ID" version="3.0">
 <display-name>simg</display-name>

 <!-- 配置用戶注冊servlet -->
 <servlet>
  <servlet-name>registservlet</servlet-name>
  <servlet-class>com.phome.servlet.RegistServlet</servlet-class>
 </servlet>
 <servlet-mapping>
  <servlet-name>registservlet</servlet-name>
  <url-pattern>/regist.action</url-pattern>
 </servlet-mapping>

 <!-- 配置圖形驗證碼servlet -->
 <servlet>
  <servlet-name>verifyimg</servlet-name>
  <servlet-class>com.phome.servlet.VerifyImgServlet</servlet-class>
 </servlet>
 <servlet-mapping>
  <servlet-name>verifyimg</servlet-name>
  <url-pattern>/verifyimg.action</url-pattern>
 </servlet-mapping>

 <welcome-file-list>
 <welcome-file>index.html</welcome-file>
 <welcome-file>index.htm</welcome-file>
 <welcome-file>index.jsp</welcome-file>
 <welcome-file>default.html</welcome-file>
 <welcome-file>default.htm</welcome-file>
 <welcome-file>default.jsp</welcome-file>
 </welcome-file-list>
</web-app>

5. 創建注冊視圖測試頁面——regist.jsp

<%@ page language="java" import="java.util.*" pageEncoding="GB18030"%>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
%>

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
 <head>
 <base href="<%=basePath%>" rel="external nofollow" rel="external nofollow" >

 <title>My JSP 'index.jsp' starting page</title>
 <meta http-equiv="pragma" content="no-cache">
 <meta http-equiv="cache-control" content="no-cache">
 <meta http-equiv="expires" content="0">
 <meta http-equiv="keywords" content="keyword1,keyword2,keyword3">
 <meta http-equiv="description" content="This is my page">
 <!--
 <link rel="stylesheet" type="text/css" href="styles.css" rel="external nofollow" rel="external nofollow" >
 -->
 </head>
 <body>
 <form action="${pageContext.request.contextPath}/regist.action" method="post">
  用戶名：<input type="text" name="username"/>
 <br />
  密碼：<input type="text" name="password"/>
 <br />
  請輸入驗證碼進行注冊：
 <img src="${pageContext.request.contextPath }/verifyimg.action"/>
 <input type="text" name="randomStr"/>
 <br />
 <input type="submit" value="regist"/>
 </form>
 </body>
</html>

5.1 創建注冊結果頁面——result.jsp

<%@ page language="java" import="java.util.*" pageEncoding="GB18030"%>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
%>

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
 <head>
 <base href="<%=basePath%>" rel="external nofollow" rel="external nofollow" >

 <title>My JSP 'index.jsp' starting page</title>
 <meta http-equiv="pragma" content="no-cache">
 <meta http-equiv="cache-control" content="no-cache">
 <meta http-equiv="expires" content="0">
 <meta http-equiv="keywords" content="keyword1,keyword2,keyword3">
 <meta http-equiv="description" content="This is my page">
 <!--
 <link rel="stylesheet" type="text/css" href="styles.css" rel="external nofollow" rel="external nofollow" >
 -->
 </head>
 <body>
 ${requestScope.resinfo }
 </body>
</html>

6.測試

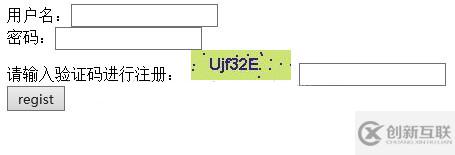

（1）a.打開瀏覽器，輸入測試地址：http://localhost:8080/java_servlet_verifyimg；出現如下圖所示頁面
