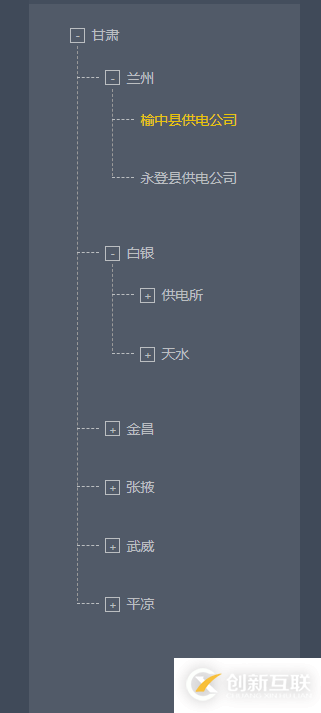

一、主要運用element封裝的控件并封裝成組件運用,如圖所示
創新互聯建站2013年開創至今,是專業互聯網技術服務公司,擁有項目成都做網站、成都網站制作網站策劃,項目實施與項目整合能力。我們以讓每一個夢想脫穎而出為使命,1280元兗州做網站,已為上家服務,為兗州各地企業和個人服務,聯系電話:028-86922220

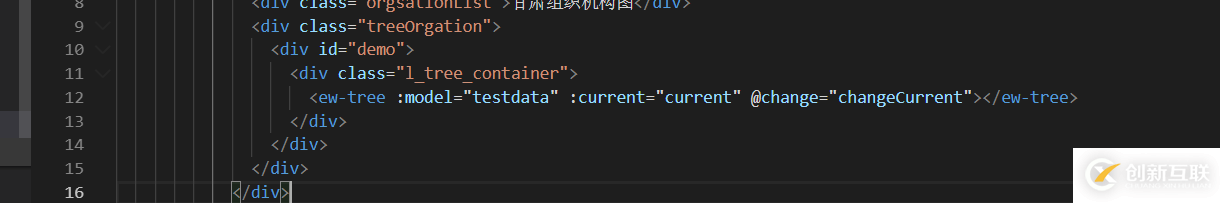

代碼如圖所示:
下面是子組件的代碼:
<template> <ul class="l_tree"> <li class="l_tree_branch" v-for="item in model" :key="item.id"> <div class="l_tree_click"> <button type="button" class="l_tree_children_btn" v-if="item.children" @click="toggle(item)">{{ !item.show ? '-' : '+' }}</button> <span class="l_folder" @click="clickSize(item.id)" :class="current === item.id ? 'current' : 'currentSize'">{{ item.name }}</span> </div> <ew-tree v-show="!item.show" :model="item.children" :current="current" @change="changeCurrent"></ew-tree> </li> </ul> </template> <script> export default { name: 'EwTree', props: { model: { type: Array, default() { return [] } }, current: { type: String, default: '' } }, methods: { toggle(item) { console.log(item) var idx = this.model.indexOf(item) this.$set(this.model[idx], 'show', !item.show) }, clickSize(id) { console.log(1, id) this.$emit('change', id) }, changeCurrent(id) { this.clickSize(id) } }, mounted() { } } </script> <style lang="less" scoped> *{ box-sizing: border-box; margin: 0;padding: 0; } *:before,*:after{ box-sizing: border-box; } ul, li { list-style: none; } .current{ color: #e9c309 !important } .l_tree_container { width: 100%; height: 100%; box-shadow: 0 0 3px #ccc; margin: 13px; position: relative; } .l_tree { width: calc(100%); padding-left: 15px; } .l_tree_branch { width: 100%; height: 100%; display: block; padding: 13px; position: relative; } .l_tree_branch .l_tree_children_btn { width: 12px; height: 12px; background-color: #515a68; font-size: 8px; text-align: center; color: #bbbec1; outline: none; border: 0; cursor: pointer; border: 1px solid #bbbec1; line-height: 11px; margin-left: 5px; } ul.l_tree:before { content: ''; border-left: 1px dashed #999999; height: calc(100% - 24px); position: absolute; left: 10px; top: 0px; } .l_tree, .l_tree_branch { position: relative; } .l_tree_branch::after { content: ''; width: 18px; height: 0; border-bottom: 1px dashed #bbbec1; position: absolute; right: calc(100% - 10px); top: 24px; left: -5px; } .l_tree_container>.l_tree::before, .l_tree_container>.l_tree>.l_tree_branch::after { display: none; } .l_folder { font-size:11px; margin-left: 5px; display: inline; color: #bbbec1; cursor: pointer; } </style>
主要難點是:current傳值問題,所以current綁定在父組件

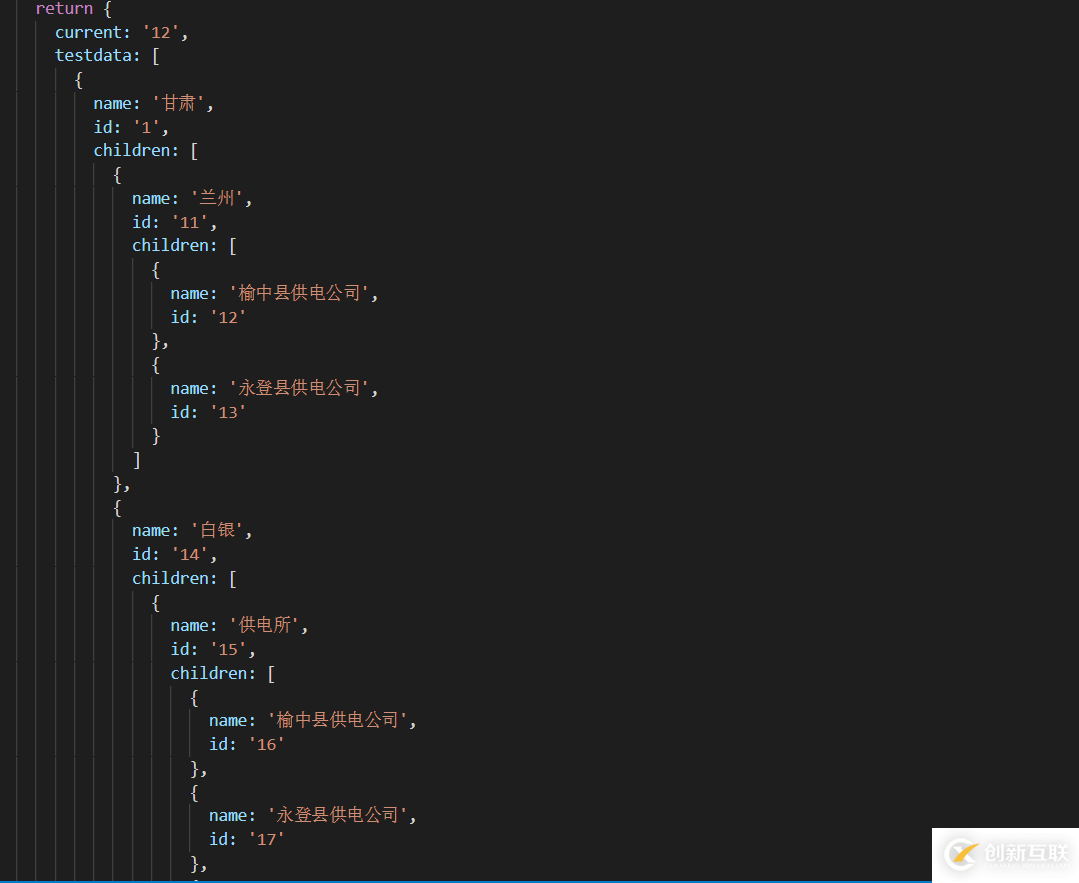

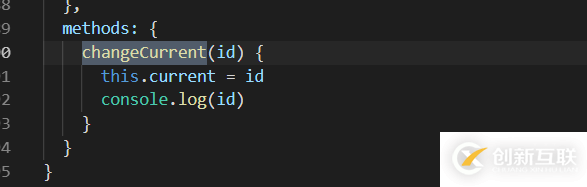

父組件中的值和方法:
當然在運行npm時是需要安裝npm install ewtree -S
,實現組件化

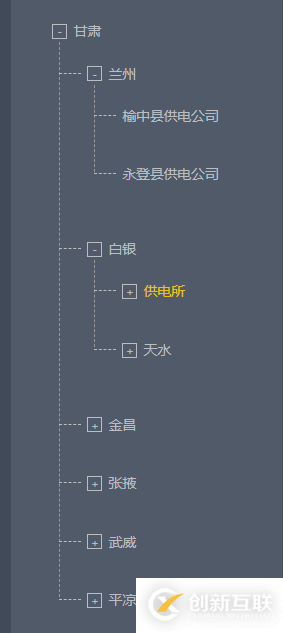

最終效果如下:
總結
以上所述是小編給大家介紹的vue實現樹形結構樣式和功能的實例代碼,希望對大家有所幫助,如果大家有任何疑問請給我留言,小編會及時回復大家的。在此也非常感謝大家對創新互聯網站的支持!
