注：以下講述的按理環境場景是基于Kubernetes環境基礎上部署的Istio環境。

公司主營業務：成都網站設計、成都做網站、移動網站開發等業務。幫助企業客戶真正實現互聯網宣傳，提高企業的競爭能力。成都創新互聯公司是一支青春激揚、勤奮敬業、活力青春激揚、勤奮敬業、活力澎湃、和諧高效的團隊。公司秉承以“開放、自由、嚴謹、自律”為核心的企業文化，感謝他們對我們的高要求，感謝他們從不同領域給我們帶來的挑戰，讓我們激情的團隊有機會用頭腦與智慧不斷的給客戶帶來驚喜。成都創新互聯公司推出海豐免費做網站回饋大家。

涉及到Envoy概念介紹請參考深度解析Istio系列之流量控制篇。本文重點針對Envoy初始化場景進行拆解。

Istio-proxy（Envoy）作為Istio數據平面的重要組件，基于sidecar方式與業務應用混合部署到同一pod，為應用提供代理服務。Pilot作為控制平面組件，基于元數據的抽象層，屏蔽底層具體容器環境（Kubernetes或者docker），同時為Envoy的策略執行提供有效的數據支撐。那么Envoy如何獲取Pilot所在地址的信息呢？

下面通過官網BookInfo案例中Productpage服務的配置文件來說明。

Pod容器說明

執行kubectl get deploy productpage-v1 -o yaml，獲取productpage部署模板，如下所示：

apiVersion: extensions/v1beta1

kind: Deployment

metadata:

  annotations:

    deployment.kubernetes.io/revision: "2"

    kubectl.kubernetes.io/last-applied-configuration: |

{"apiVersion":"extensions/v1beta1","kind":"Deployment","metadata":{"annotations":{},"creationTimestamp":null,"name":"productpage-v1","namespace":"default"},"spec":{"replicas":1,"strategy":{},"template":{"metadata":{"annotations":{"sidecar.istio.io/status":"{\"version\":\"50128f63e7b050c58e1cdce95b577358054109ad2aff4bc4995158c06924a43b\",\"initContainers\":[\"istio-init\"],\"containers\":[\"istio-proxy\"],\"volumes\":[\"istio-envoy\",\"istio-certs\"],\"imagePullSecrets\":null}"},"creationTimestamp":null,"labels":{"app":"productpage","version":"v1"}},"spec":{"containers":[{"image":"istio/examples-bookinfo-productpage-v1:1.8.0","imagePullPolicy":"IfNotPresent","name":"productpage","ports":[{"containerPort":9080}],"resources":{}},{"args":["proxy","sidecar","--configPath","/etc/istio/proxy","--binaryPath","/usr/local/bin/envoy","--serviceCluster","productpage","--drainDuration","45s","--parentShutdownDuration","1m0s","--discoveryAddress","istio-pilot.istio-system:15007","--discoveryRefreshDelay","1s","--zipkinAddress","zipkin.istio-system:9411","--connectTimeout","10s","--proxyAdminPort","15000","--controlPlaneAuthPolicy","NONE"],"env":[{"name":"POD_NAME","valueFrom":{"fieldRef":{"fieldPath":"metadata.name"}}},{"name":"POD_NAMESPACE","valueFrom":{"fieldRef":{"fieldPath":"metadata.namespace"}}},{"name":"INSTANCE_IP","valueFrom":{"fieldRef":{"fieldPath":"status.podIP"}}},{"name":"ISTIO_META_POD_NAME","valueFrom":{"fieldRef":{"fieldPath":"metadata.name"}}},{"name":"ISTIO_META_INTERCEPTION_MODE","value":"REDIRECT"},{"name":"ISTIO_METAJSON_LABELS","value":"{\"app\":\"productpage\",\"version\":\"v1\"}\n"}],"image":"docker.io/istio/proxyv2:1.0.5","imagePullPolicy":"IfNotPresent","name":"istio-proxy","ports":[{"containerPort":15090,"name":"http-envoy-prom","protocol":"TCP"}],"resources":{"requests":{"cpu":"10m"}},"securityContext":{"readOnlyRootFilesystem":true,"runAsUser":1337},"volumeMounts":[{"mountPath":"/etc/istio/proxy","name":"istio-envoy"},{"mountPath":"/etc/certs/","name":"istio-certs","readOnly":true}]}],"initContainers":[{"args":["-p","15001","-u","1337","-m","REDIRECT","-i","*","-x","","-b","9080","-d",""],"image":"docker.io/istio/proxy_init:1.0.5","imagePullPolicy":"IfNotPresent","name":"istio-init","resources":{},"securityContext":{"capabilities":{"add":["NET_ADMIN"]},"privileged":true}}],"volumes":[{"emptyDir":{"medium":"Memory"},"name":"istio-envoy"},{"name":"istio-certs","secret":{"optional":true,"secretName":"istio.default"}}]}}},"status":{}}

  creationTimestamp: 2018-12-18T01:51:18Z

  generation: 2

  labels:

    app: productpage

    version: v1

  name: productpage-v1

  namespace: default

  resourceVersion: "17402700"

  selfLink: /apis/extensions/v1beta1/namespaces/default/deployments/productpage-v1

  uid: 695ba22c-0267-11e9-8475-0050569c62d0

spec:

  progressDeadlineSeconds: 600

  replicas: 1

  revisionHistoryLimit: 10

  selector:

    matchLabels:

      app: productpage

      version: v1

  strategy:

    rollingUpdate:

      maxSurge: 1

      maxUnavailable: 1

    type: RollingUpdate

  template:

    metadata:

      annotations:

        sidecar.istio.io/status: '{"version":"50128f63e7b050c58e1cdce95b577358054109ad2aff4bc4995158c06924a43b","initContainers":["istio-init"],"containers":["istio-proxy"],"volumes":["istio-envoy","istio-certs"],"imagePullSecrets":null}'

      creationTimestamp: null

      labels:

        app: productpage

        version: v1

    spec:

      containers:

      - image: istio/examples-bookinfo-productpage-v1:1.8.0

        imagePullPolicy: IfNotPresent

        name: productpage

        ports:

        - containerPort: 9080

          protocol: TCP

        resources: {}

        terminationMessagePath: /dev/termination-log

        terminationMessagePolicy: File

      - args:

        - proxy

        - sidecar

        - --configPath

        - /etc/istio/proxy

        - --binaryPath

        - /usr/local/bin/envoy

        - --serviceCluster

        - productpage

        - --drainDuration

        - 45s

        - --parentShutdownDuration

        - 1m0s

        - --discoveryAddress

        - istio-pilot.istio-system:15007

        - --discoveryRefreshDelay

        - 1s

        - --zipkinAddress

        - zipkin.istio-system:9411

        - --connectTimeout

        - 10s

        - --proxyAdminPort

        - "15000"

        - --controlPlaneAuthPolicy

        - NONE

        env:

        - name: POD_NAME

          valueFrom:

            fieldRef:

              apiVersion: v1

              fieldPath: metadata.name

        - name: POD_NAMESPACE

          valueFrom:

            fieldRef:

              apiVersion: v1

              fieldPath: metadata.namespace

        - name: INSTANCE_IP

          valueFrom:

            fieldRef:

              apiVersion: v1

              fieldPath: status.podIP

        - name: ISTIO_META_POD_NAME

          valueFrom:

            fieldRef:

              apiVersion: v1

              fieldPath: metadata.name

        - name: ISTIO_META_INTERCEPTION_MODE

          value: REDIRECT

        - name: ISTIO_METAJSON_LABELS

          value: |

            {"app":"productpage","version":"v1"}

        image: docker.io/istio/proxyv2:1.0.5

        imagePullPolicy: IfNotPresent

        name: istio-proxy

        ports:

        - containerPort: 15090

          name: http-envoy-prom

          protocol: TCP

        resources:

          requests:

            cpu: 10m

        securityContext:

          readOnlyRootFilesystem: true

          runAsUser: 1337

        terminationMessagePath: /dev/termination-log

        terminationMessagePolicy: File

        volumeMounts:

        - mountPath: /etc/istio/proxy

          name: istio-envoy

        - mountPath: /etc/certs/

          name: istio-certs

          readOnly: true

      DNSPolicy: ClusterFirst

      initContainers:

      - args:

        - -p

        - "15001"

        - -u

        - "1337"

        - -m

        - REDIRECT

        - -i

        - '*'

        - -x

        - ""

        - -b

        - "9080"

        - -d

        - ""

        image: docker.io/istio/proxy_init:1.0.5

        imagePullPolicy: IfNotPresent

        name: istio-init

        resources: {}

        securityContext:

          capabilities:

            add:

            - NET_ADMIN

          privileged: true

        terminationMessagePath: /dev/termination-log

        terminationMessagePolicy: File

      restartPolicy: Always

      schedulerName: default-scheduler

      securityContext: {}

      terminationGracePeriodSeconds: 30

      volumes:

      - emptyDir:

          medium: Memory

        name: istio-envoy

      - name: istio-certs

        secret:

          defaultMode: 420

          optional: true

          secretName: istio.default

status:

  availableReplicas: 1

  conditions:

  - lastTransitionTime: 2018-12-18T01:51:19Z

    lastUpdateTime: 2018-12-18T01:51:19Z

    message: Deployment has minimum availability.

    reason: MinimumReplicasAvailable

    status: "True"

    type: Available

  - lastTransitionTime: 2018-12-18T01:51:18Z

    lastUpdateTime: 2018-12-18T03:48:52Z

    message: ReplicaSet "productpage-v1-7b96bbf89f" has successfully progressed.

    reason: NewReplicaSetAvailable

    status: "True"

    type: Progressing

  observedGeneration: 2

  readyReplicas: 1

  replicas: 1

  updatedReplicas: 1

模板中可見，除業務應用外，還包括istio-init，istio-proxy兩個容器。istio-init作為Init Container類型，在應用容器啟動之前啟動，用來執行初始化任務。Istio-init主要初始化iptables規則，用于服務間調用時的請求攔截及轉發。Istio-proxy是代理容器（即Envoy），容器中包含兩個進程，分別是Pilot-agent進程和Envoy進程。前者負責生成Envoy啟動所需的配置文件，啟動Envoy進程。后者在服務調用發生時負責具體的策略執行。

Envoy配置信息詳解

Envoy啟動后，執行kubectl exec -it productpage-v1-7b96bbf89f-pj28l -c istio-proxy /bin/sh，進入istio-proxy容器內部，在/etc/istio/proxy目錄下存在envoy-rev0.json配置文件，如圖2所示：

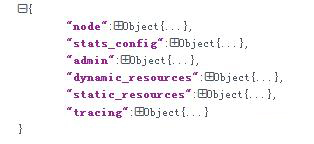

該文件是Pilot是Pilot-agent進程根據服務啟動參數以及Kubernetes Server API的信息生成，配置文件框架如圖3所示：

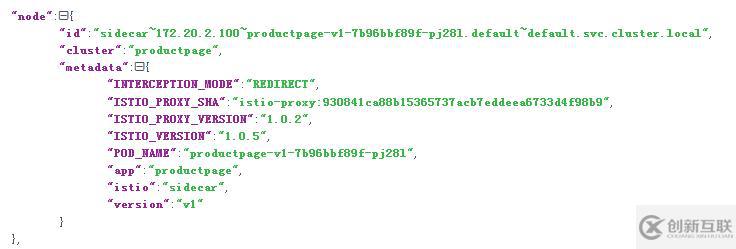

Node包含的信息如圖4所示：

這里重點說明cluster屬性，該屬性值為productpage，說明當前的istio-proxy服務為productpage應用的代理服務，iptables將調用productpage服務請求攔截后，直接轉發到該istio-proxy進行處理。

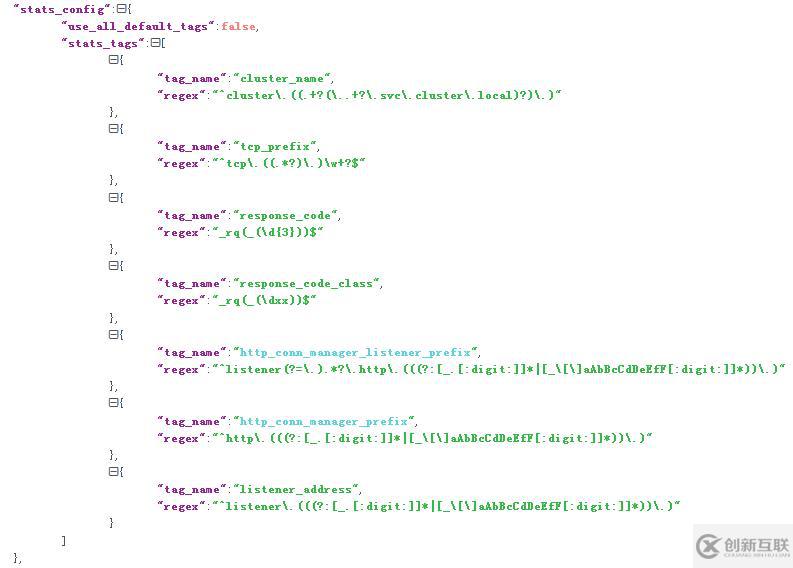

stats_config包含的信息如圖5所示：

static_config重點設定部分屬性的命名規則。

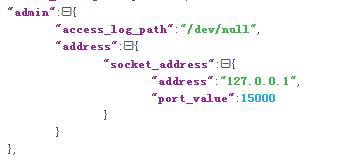

admin包含的信息如圖6所示：

admin類似Envoy內部的一個管理器，暴露出的15000端口只能在容器內部被訪問。

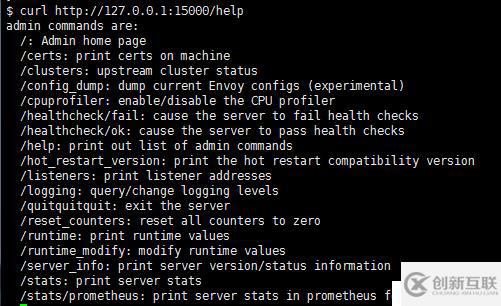

通過curl http://127.0.0.1:15000/help訪問能獲取其他接口信息，如下圖7所示：

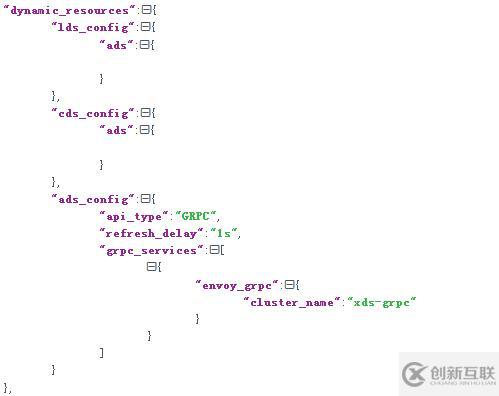

dynamic_resources包含的信息如圖8所示：

dynamic_resources中記錄pilot調取XDS接口采用ADS聚合發現服務，這種方式能更好的保證從pilot上獲取到的數據的一致性。

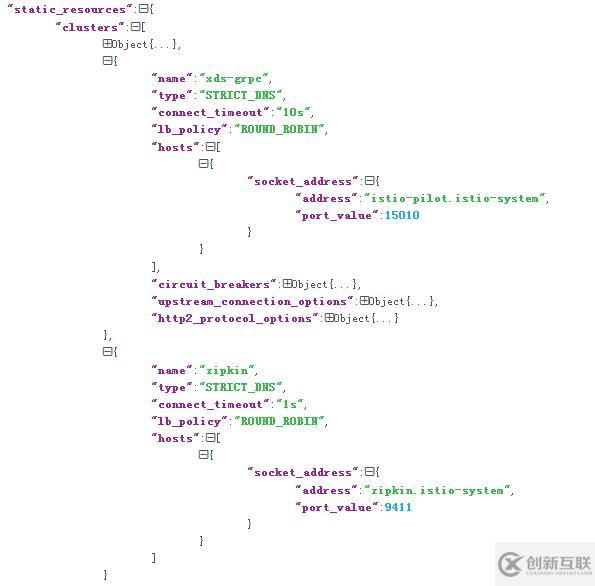

static_resources包含的部分信息如圖9所示：

static_resources name屬性值為xds-grpc，與上述dynamic_resources模塊的信息里cluster_name的值一致。同時xds-grpc對象信息中包括pilot組件的服務地址“istio-pilot.istio-system:15010”，即為istio-proxy從pilot獲取動態信息的服務地址。Istio-proxy（Envoy）通過該地址調取XDS接口，獲取服務信息。除此之外，static_resources中提供zipkin服務的地址，zipkin是用于服務分布式跟蹤。

綜上可知Envoy啟動時，pilot-agent進程生成Envoy啟動所需的配置文件，Envoy基于配置文件中攜帶的pilot地址信息動態獲取服務信息，并且基于pilot提供的XDS接口，動態獲取服務的listener，cluster，endpoint和route信息。
